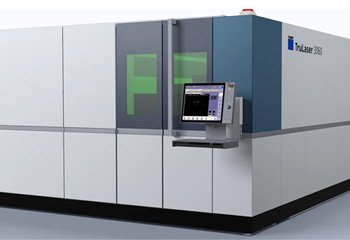

TruLaser3060 (6000W)
TRUMPF
Germany
Laser Cutting
2.5mx6m, Max thickness: steel 35mm, stainless steel 30mm, aluminum 30mm,copper 10mm,brass 16mm
1
in 2017
Laser cutter
Expand your part range by oversize format processing in a working area of 6 x 2.5 m with the TruLaser 3060 fiber. This machine not only opens up completely new dimensions for you, but you can also achieve extremely high-quality cutting results thanks to the TruDisk disk laser. Due to the TRUMPF functions, you can even cut thick mild steel with process reliability, resulting in smooth cutting edges and simple part removal. In the generous working range, you can also automatically process up to four medium format sheets one after the other – even if these sheets have different sheet thicknesses and are made of different materials.
Expand your part range by oversize format processing in a working area of 6 x 2.5 m with the TruLaser 3060 fiber. This machine not only opens up completely new dimensions for you, but you can also achieve extremely high-quality cutting results thanks to the TruDisk disk laser. Due to the TRUMPF functions, you can even cut thick mild steel with process reliability, resulting in smooth cutting edges and simple part removal. In the generous working range, you can also automatically process up to four medium format sheets one after the other – even if these sheets have different sheet thicknesses and are made of different materials.
Multi-sheet processing
Thanks to the multi-sheet processing function, you can also automatically process several small sheets on a pallet one after the other.
Oversize formats up to 6 x 2.5 m
You can process sheets from 6 to 2.5 m – more than for any other machine in this class.
Intricate cutting even in thick mild steel
With the CoolLine function, you can even create small contours in thick mild steel.
The best results without compromise
BrightLine fiber facilitates excellent part quality and seamless removal of the parts.
Utilise remainder sheets perfectly – post-produce parts easily
Using Drop&Cut, you can easily post-produce parts from remainder sheets.
Increased machine availability
Condition Guide always monitors the condition of your machine.
Reliability without microjoints
Smart collision prevention reduces the risk of collisions during laser cutting.
Multi-sheet processing
Thanks to the multi-sheet processing function, you can also automatically process several small sheets on a pallet one after the other.
Oversize formats up to 6 x 2.5 m
You can process sheets from 6 to 2.5 m – more than for any other machine in this class.
Intricate cutting even in thick mild steel
With the CoolLine function, you can even create small contours in thick mild steel.
The best results without compromise
BrightLine fiber facilitates excellent part quality and seamless removal of the parts.
Utilise remainder sheets perfectly – post-produce parts easily
Using Drop&Cut, you can easily post-produce parts from remainder sheets.
Increased machine availability
Condition Guide always monitors the condition of your machine.
Reliability without microjoints
Smart collision prevention reduces the risk of collisions during laser cutting.
TruLaser 3060 fiber | |
---|---|
DIMENSIONS | |
LENGTH | 15700 mm |
WIDTH | 6800 mm |
HEIGHT | 2280 mm |
MAXIMUM SPEED | |
SIMULTANEOUS | 140 m/min |
WORKING RANGE | |
X AXIS | 6000 mm |
Y AXIS | 2500 mm |
MAX. WORKPIECE WEIGHT | 3000 kg |
LASER-SPECIFIC DATA - TRUDISK 6001 | |
MAX. LASER POWER | 6000 W |
MAX. SHEET THICKNESS, MILD STEEL | 30 mm |
MAX. SHEET THICKNESS, STAINLESS STEEL | 30 mm |
MAX. SHEET THICKNESS, ALUMINIUM | 25 mm |
MAX. SHEET THICKNESS, COPPER | 10 mm |
MAX. SHEET THICKNESS, BRASS | 16 mm |
CONSUMPTION VALUES | |
AVERAGE POWER INPUT IN PRODUCTION - TRUDISK 3001 | 13 kW |
AVERAGE POWER INPUT IN PRODUCTION - TRUDISK 4001 | 15 kW |
AVERAGE POWER INPUT IN PRODUCTION - TRUDISK 6001 | 18 kW |
TruLaser 3060 fiber | |
---|---|
DIMENSIONS | |
LENGTH | 15700 mm |
WIDTH | 6800 mm |
HEIGHT | 2280 mm |
MAXIMUM SPEED | |
SIMULTANEOUS | 140 m/min |
WORKING RANGE | |
X AXIS | 6000 mm |
Y AXIS | 2500 mm |
MAX. WORKPIECE WEIGHT | 3000 kg |
LASER-SPECIFIC DATA - TRUDISK 6001 | |
MAX. LASER POWER | 6000 W |
MAX. SHEET THICKNESS, MILD STEEL | 30 mm |
MAX. SHEET THICKNESS, STAINLESS STEEL | 30 mm |
MAX. SHEET THICKNESS, ALUMINIUM | 25 mm |
MAX. SHEET THICKNESS, COPPER | 10 mm |
MAX. SHEET THICKNESS, BRASS | 16 mm |
CONSUMPTION VALUES | |
AVERAGE POWER INPUT IN PRODUCTION - TRUDISK 3001 | 13 kW |
AVERAGE POWER INPUT IN PRODUCTION - TRUDISK 4001 | 15 kW |
AVERAGE POWER INPUT IN PRODUCTION - TRUDISK 6001 | 18 kW |
